Modular Frame Part Dimensions

The NRS frame system is the most adjustable and adaptable raft frame system you can buy. The heart of the system is the LoPro Frame Fitting, which allows pieces to be added, removed and adjusted for the perfect rafting or cataraft setup.

Our frames and frame parts are built right here in Moscow, Idaho by our skilled and innovative Frameshop crew. They work with specialized tools and equipment to make precisely finished parts that you can count on to fit your frame.

The diagrams below show the design specs of the system’s individual parts.

    Jump to:

    Angler Seat Bar

    Angler Seat Bar
    ABC
    48"14"6 3/4"
    54"15"7 3/4""
    60"17"8"
    66"17"8"
    72"17"8"

    Products with this Sizing Chart:

    Bench Seat

    Bench Seat
     AB
    Board dimensions for 48" wide frames12"44"
    Board dimensions for 54" wide frames12"50"
    Board dimensions for 60" wide frames12"56"
    Board dimensions for 66" wide frames12"62"
    Board dimensions for 72" wide frames12"68"

    Products with this Sizing Chart:

    Casting Platform

    Casting Platform
     ABCDEFG
    Small - 48"x19 3/4"11 1/2"x18"20 1/2"12"
    Small - 54"x19 3/4"11 1/2"x18"20 1/2"12"
    Largex23"12"21 1/2"27"27"12"

    Products with this Sizing Chart:

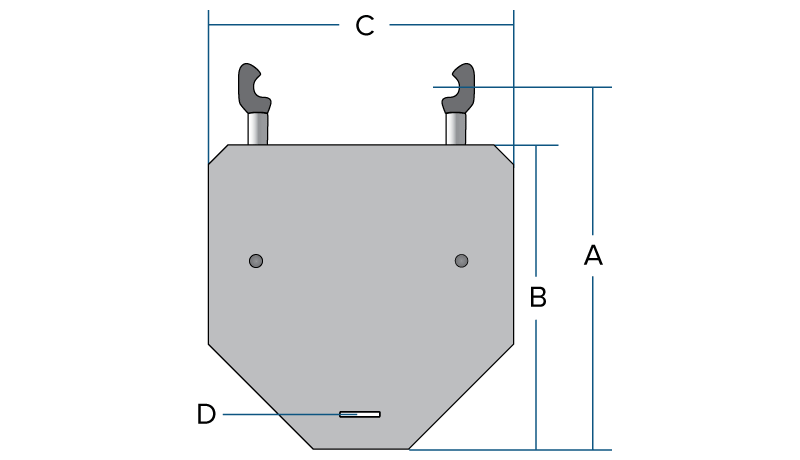

    Casting Platform For Front Thigh Hook

    Casting Platform For Front Thigh Hook
     ABCDEFG
    Small - 48"21 7/8"19 3/4"11 1/2"x18"20 1/2"12"
    Small - 54"21 7/8"19 3/4"11 1/2"x18"20 1/2"12"
    Large25 1/8"23"12"21 1/2"27"27"12"

    Products with this Sizing Chart:

    Cataraft Aluminum Floor

    Cataraft Aluminum Floor
     ABC
    66"W Frame31 5/8"48"1 1/4"
    72"W Frame37 5/8"48"1 1/4"

    Products with this Sizing Chart:

    Cataraft Motor Mount

    Cataraft Motor Mount
    ABC
    12"5 5/8"1 5/8"

    Products with this Sizing Chart:

    Cataraft Yoke

    Cataraft Yoke
    ABCDE
    66"33 3/8"11 1/8"2 3/4"2 5/8"
    72"39 3/8"11 1/8"2 3/4"2 5/8"

    Products with this Sizing Chart:

    Cross Bar

    Cross Bar
    A
    39 3/8"
    48"
    54"
    60"
    66"
    72"
    82"

    Products with this Sizing Chart:

    Deluxe Foot Bar

    Deluxe Foot Bar
    ABCDE
    10 3/8"32 1/2"7"Adjustable11"

    Products with this Sizing Chart:

    Flip Seat Mount

    Flip Seat Mount
    ABCDEF
    16"9 1/4"7"7"7 1/2"6"

    Products with this Sizing Chart:

    Foot Bar

    Foot Bar
    ABC
    48"14"6 3/4"
    54"15"7 3/4"
    60"17"8"
    66"23"8"
    72"29"8"
    82"33"8"

    Products with this Sizing Chart:

    Foot Pegs

    Foot Pegs
    ABC
    9"1 3/8"6"

    Products with this Sizing Chart:

    Front Thigh Hook

    Front Thigh Hook
    ABCDE
    19"29"9 1/2"11"15 3/4"

    Products with this Sizing Chart:

    LoPro

    LoPro
    ABCDE
    3 3/8"2"2 1/8"1 5/8"1 3/8"

    Products with this Sizing Chart:

    Oar Mounts

    Oar Mounts
     AB
    6" Oar Mount6 3/8"3"
    8" Oar Mount8 3/8"3 1/2"
    10" Oar Mount10 3/8"5 1/4"

    Products with this Sizing Chart:

    Oarlocks

    Oarlocks
     ABCDE
    NRS Atomic Aluminum Oarlock3 7/8"1 5/8"2 3/8"7 1/8"5/8"
    NRS Superston Oarlocks3 5/8"1 5/8"2 3/8"6 3/4"5/8"
    NRS Superston Oarlocks - 1/2" Shank3 5/8"1 5/8"2 3/8"6 3/4"1/2"
    NRS Mini Aluminum Oarlocks3"1 5/16"1 13/16"5 3/4"1/2"
    Sawyer Cobra Oarlocks3 3/4"1 7/8"2 1/4"7 3/4"5/8"

    Products with this Sizing Chart:

    Raft Motor Mount

    Raft Motor Mount
    ABCDEF
    13 7/8"10 1/2"17"17 7/8"7 1/2"24"
    Support arms are bent in toward boat at a 7 degree angle from the vertical.

    Products with this Sizing Chart:

    Raft U-Style Motor Mount

    Raft U-Style Motor Mount
    ABCTransom Plate
    25"13 7/8"11"1 1/2" x 7 1/2" x 18"

    Products with this Sizing Chart:

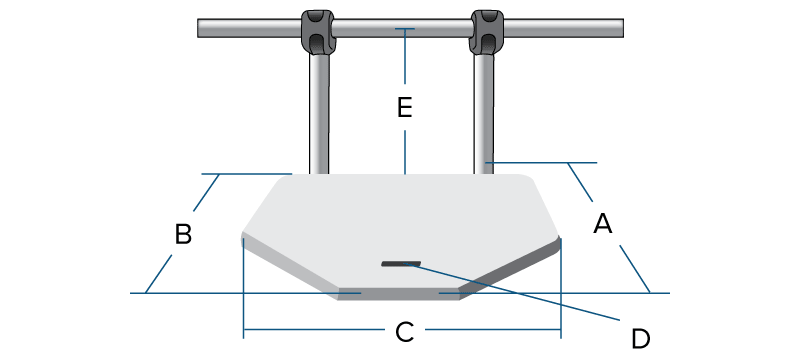

    Rear Casting Platform

    Rear Casting Platform
     ABCDEFG
    Smallx19 3/4"11 1/2"x18"20 1/2"12"
    Largex23"12"21 1/2"27"27"12"

    Products with this Sizing Chart:

    Rear Thigh Hook

    Rear Thigh Hook
    ABCDE
    19"19"9 1/2"11"15 3/4"

    Products with this Sizing Chart:

    Side Rail Racks

    Side Rail Racks
     ABC
    3' Rack18"7 7/8"9 3/4"
    4' Rack30"7 7/8"9 3/4"
    6' Rack54"7 7/8"9 3/4"

    Products with this Sizing Chart:

    Sport Cat Drop Side Rails

    Sport Cat Drop Side Rails
    AB
    85 1/2"6 1/4"

    Products with this Sizing Chart:

    Spreader Bar

    Spreader Bar
     ABC
    66" W Frames31 5/8"2 1/2"1 1/4"
    72" W Frames37 5/8"2 1/2"1 1/4"

    Products with this Sizing Chart:

    Standard Drop Side Rails

    Standard Drop Side Rails
     AB
    Fits to cross bars flush at the end of 68” side rails, or equivalent spacing65 1/2"9 3/8"
    Fits to cross bars flush at the end of 88” side rails, or equivalent spacing85 1/2"9 3/8"

    Products with this Sizing Chart:

    Stern Frame

    Stern Frame
    SizeABCD
    Small36"30"62"10"
    Large36"44"78"10"

    Products with this Sizing Chart:

    Stern Seat Mount

    Stern Seat Mount
    SizeABC
    Small - 32" (54" frames or smaller)32"30"9"
    Small - 39" (54" frames or smaller)39"30"9"
    Large (60" frames or larger)36"30"16 1/2"

    Products with this Sizing Chart:

    Stern Side Rails

    Stern Side Rails
    ABCDE
    32"12"8"12"9"
    36"8"16"12"16 1/2"
    39"12"8"19"9"

    Products with this Sizing Chart:

    Swivel and Plates for Padded Raft Seats

    Swivel and Plates for Padded Raft Seats
    ABCDEF
    9 1/4"8 1/4"7 1/2"7"6 3/8"4 3/4" - 5 1/2"

    Products with this Sizing Chart:

    Thigh Bar

    Thigh Bar
    ABCDEF
    19"12"24"6"38"28"

    Products with this Sizing Chart:

    U-bolts

    U-bolts
    SizeAB
    Standard2 1/8"1 5/8"
    Oversized2 5/8"1 5/8"

    Products with this Sizing Chart:

    U-Shaped Thigh Bar

    U-Shaped Thigh Bar
     ABCDE
    Small19"12"19"39 1/2"28"
    Large19"12"28"48 1/2"28"

    Products with this Sizing Chart:

    Universal Seat Mount

    Universal Seat Mount
    ABCDE
    9 1/8"7"7 1/2"4 3/4" - 5 1/2"4 3/4" - 5 1/2"

    Products with this Sizing Chart:

    Y Thighbar

    Y Thighbar
    ABC
    27 1/2"25"5 1/2"

    Products with this Sizing Chart:
