NRS HDPE Frame Casting Platform

Item: 93040.04
  • Image for NRS HDPE Frame Casting Platform


  • Alternate product image 93040_04_na_54_Left_052019

    Small - 54"

  • Alternate product image 93040_04_na_48_Left_052019

    Small - 48"

  • Alternate product image 93040_04_Grey_na_Texture_052819

    Board Surface Texture

  • Alternate product image 93040_04_na_Large_Right_052019


  • Alternate product image 93040_04_na_54_Right_052019

    Small - 54"

  • Alternate product image 93040_04_na_48_Right_052019

    Small - 48"


SIZE | Size Chart
What Size do you need?
In Stock & Ready to Ship!

Your order ships for free!*

Product Details

Avoid balancing on that standard or air floor. Be sure-footed and secure on this solid Casting Platform that attaches to your NRS frame.
  • The platform is made from our 3/4" high-density polyethylene (HDPE) material. The raised pattern slip-resistant surface gives you excellent footing, even when wet.
  • HDPE doesn't absorb water, is low maintenance and perfect for your fishing adventures.
  • The platform has been enlarged and shaped to give you more standing area.
  • Available in three sizes, to accommodate boat with different frame sizes.
  • The Small - 48" casting platform is for boats with 48" wide frames.
  • The Small - 54" casting platform is for boats with 54" wide frames.
  • The Large casting platform is for boats with 60" wide or larger frames.
  • Clamps with our LoPro™ Frame Fittings to an Angler Seat Bar for a custom casting location.
  • Made from hot-forged aluminum alloy for a strength-to-weight ratio that can't be beat, the LoPro is the heart of the NRS frame system.
  • The slot in the end of the platform allows you to secure the platform to a raft D-ring for even more solid footing.


Casting Platform Sizes:
  • Small - 48" wide frames
  • Small - 54" wide frames
  • Large - for 60" wide and larger frames
  • Small - 15.8 lbs.
  • Large - 21.5 lbs.
Material: 1 5/8" 6063-T6 Anodized Aluminum Frame Pipe
Included Components:
  • 1 - HDPE Platform
  • 4 - NRS Frame Pipes with LoPro Fittings
  • 4 - U-bolts with nuts and washers
  • 2 - Rubber Frame Plugs

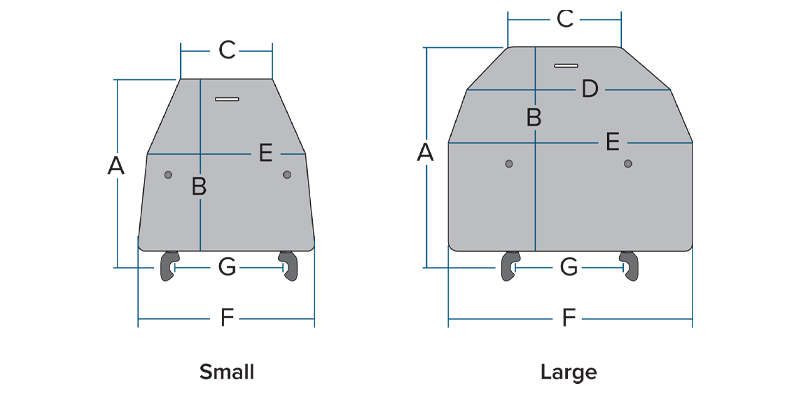

Casting Platform
  A B C D E F G
Small - 48" x 19 3/4" 11 1/2" x 18" 20 1/2" 12"
Small - 54" x 19 3/4" 11 1/2" x 18" 20 1/2" 12"
Large x 23" 12" 21 1/2" 27" 27" 12"

Product Instructions

  1. Install the U-bolts into the platform LoPros. It may be necessary bend the horns of the U-bolts so that they line up with the holes in the LoPros. This small amount of bending can usually be done by hand.
  2. Place the hanger bars onto the platform LoPros and add the nuts and washers, but don't tighten them yet.
  3. Position the platform in front of the raised seat bar. The LoPro on the hanger bar should line up with the angled parts of the seat bar. The bars on the platform can be moved from side to side to aid in lining up the castings.
  4. Once everything is lined up, install the U-bolts in the hanger bar LoPros and tighten all of the lock nuts.
  5. Thread a strap through the hole in the front of the platform and run it to a D-ring or other solid attachment point in front of the platform to help support the user’s weight.
  6. To ensure the longevity of these and all frame parts, periodically check the tightness of all the nuts and platform bolts.
